Capteur Quantique Centre NV - Version basique

La détection à l'aide de centres NV est une approche prometteuse pour la détection de champs magnétiques faibles. Dans le cas de l'enseignement , elle constitue le lien parfait entre les effets quantiques à température ambiante et l'application de la technologie quantique.


This Kit combines the building blocks of a standard NV-center ensemble setup with an easy to use user-interface as well as integrated courses on the physics behind the observed effects. It can be used as a standalone learning-kit for NV sensing, lecture hall experiments or lab course introduction to NV-centers, optically detected magnetic resonance and Zeeman effect. Add-ons are available to broaden the usability spectrum even further. With this, it’s a compact solution for introduction into the linked fields of quantum optics, solid state physics and electron spin resonance.

Physical effects & measurements

  •     Optics & Spectroscopy
  •     Fluorescence
  •     Crystal structure and symmetries
  •     Quantum state mixing: What does 'good quantum number' actually mean?
  •     Electron spin resonance
  •     Zeeman effect
  •     Optical detection of magnetic resonance: ODMR

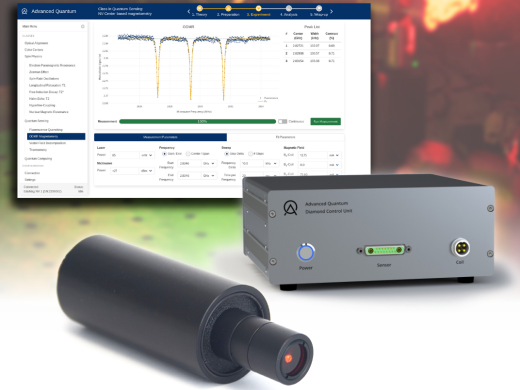

Included in Kit

  •     Control unit housing the required electronics
  •         Data acquisition system
  •         Microwave generator
  •         Laser controller
  •     Integrated sensor head
  •         Diamond with high concentration of NV-centers
  •         Optical excitation laser
  •         Photodetection unit
  •     Mount for sensor head and permanent magnet
  •     Browser based control-software with integrated courses

Options & Extensions  :

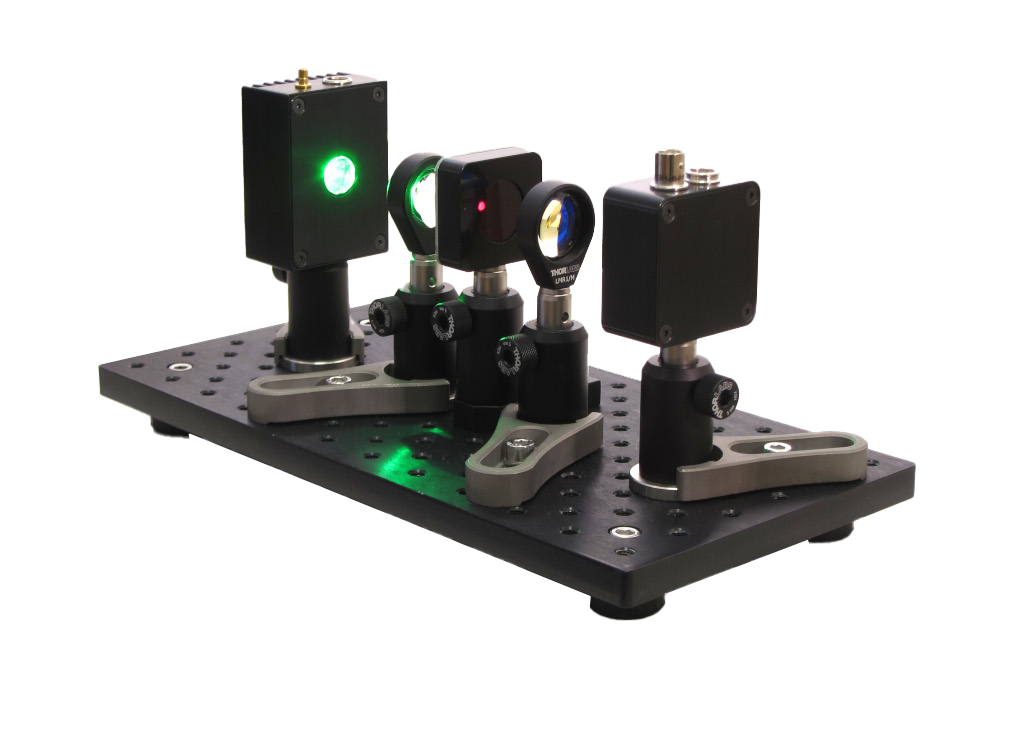

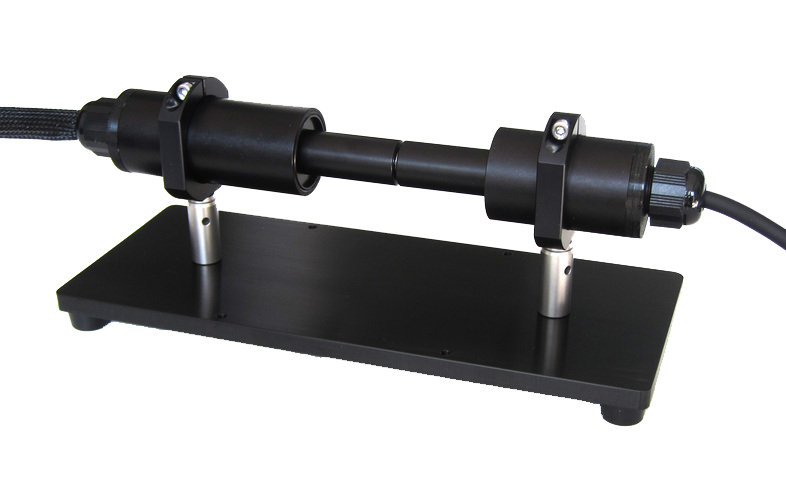

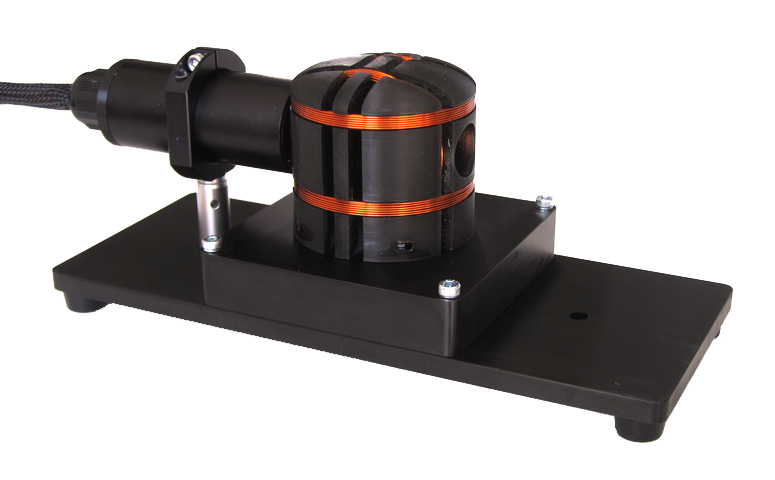

Breadboard Kit  -- Vector Magnetometry -- Temperature Sensing -- Hyperfine Driving --  Spectroscopic Analysis

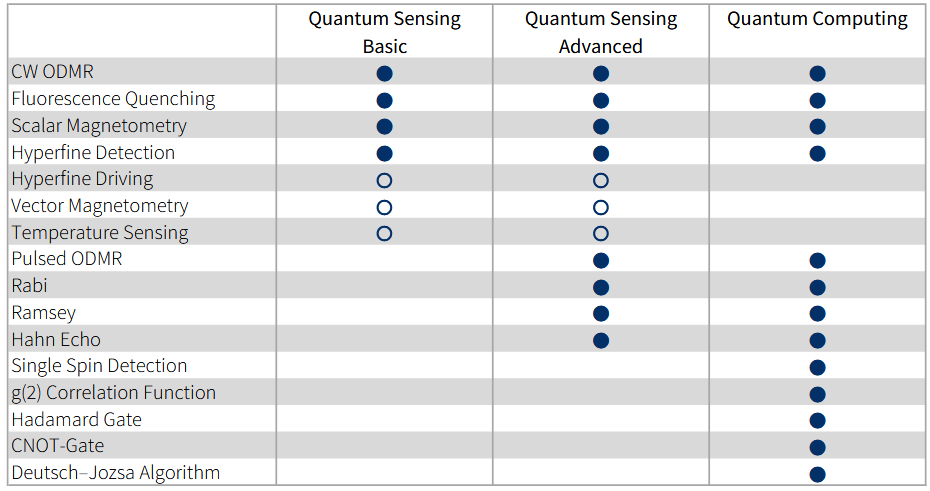

The rest of the kits offered by Advance Quantum :





Didactic Concept & User Interface

The clean and sorted graphical user interface focuses on the task at hand. Our browser-based control technology allows for easy integration into remote courses or local operation via USB or network. Operate the system with existing devices in your lab or ask for pre-setup solutions tailored to your needs.

Guide included :

    Study the theoretical background
    Formulate expectations, estimate parameters and prepare a measurement plan
    Perform the actual experiment
    Analyze data and compare to expectations
    Pose and answer key questions to check the gained understanding

Ideal for lecture hall demonstration  : No alignement, Brower based GUI for quick installation
